HEAVY EQUIPMENT

SCISSORLIFT, 32', SLAB ONLY


	Image for reference only Actual item may look different Click on image for larger view Click on above thumbnails for alternate view

Daily: $160.00

Weekly: $720.00

Monthly: $2,480.00

Quantity: for a period of
day(s) week(s) month(s)

Additional Information

AVAILABLE MODELS :
*GENIE GS3246
*JLG 3246ES
*SNORKEL S4732E
GENIE SPECS:
Max Working Height 38.5 ft in (11750mm)
Max Platform Height 32ft (9750mm)
Max Platform Weight Capacity 701.1 lbs (318kg)
Platform Width 45.3 in (1150mm)
Platform Length 89in (2260mm)
Lift time 57 sec
Lower Time 35 sec
Deck Extension 35.8 in (910mm)

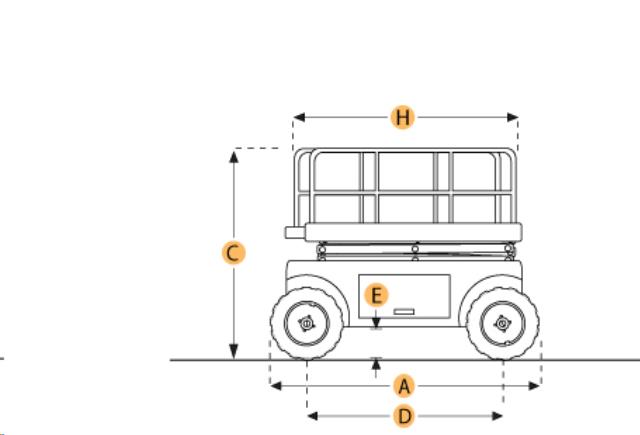

*Machine Dimensions...
Overall Length 7.9 ft in (2410mm)
Overall Width 3.8 ft in (1170mm)
Overall Stowed Height w/rails 7.8 ft in (2390mm)
Overall Stowed Height w/o rails 5.9 ft in (1800mm)
Wheelbase 6.1 ft in (1850mm)
Turning Radius 7.5 ft in (2290mm)
Ground Clearance - At machine center 4in (10.1 cm)
*
Engine...
System Voltage 24V
Number of Batteries 4
*
Operational...
Operating Weight 5211.7 lbs (2364kg)
Hydraulic System Fluid Capacity 4.5 gal (17L)
Max speed 2.2 mph (3.5km/h)
Tire size 15x5x11
Tire Fill/Type Solid non-marking
*************************
SNORKEL S4732E
DIMENSIONS
Max. working height 38 ft
Max. platform height 32 ft
Platform size (stowed) 43 in x 84.38 in
Platform size (extended) 43 in x 132.38 in
Deck extension length 48 in
Overall length (with step) 90.6 in
Overall length (step removed) 89 in
Overall width 47 in
Stowed height 94.2 in
Min. height (guardrails folded) 76.88 in
Ground clearance (stowed) 2.63 in
Ground clearance (elevated) 0.75 in
PERFORMANCE
Platform capacity 700 lbs
Max. wind speed 28 mph
Max. drive height 32 ft
Max. drive speed (stowed) 2.0 mph
Max. drive speed (elevated) 0.4 mph
Raise/lower time 50/58 sec
Gradeability 25%
Inside turning radius 21 in
Outside turning radius 95 in
Tires 15in x 5in non-marking rubber
Controls proportional
Drive system 2 wheel drive
POWER
Power source 24V DC battery electric
Charger 90-240V, 25amp
Weight 5,700 lbs

* All prices are in CI$ and are subject to change and other fees may not be shown in the above price lists. Rates are rental only. Other charges may apply for fuel, cleaning, delivery, setup, etc. Some event equipment item photos show add-on decor items by others. Please check with us if in doubt on what is included.
