HEAVY EQUIPMENT

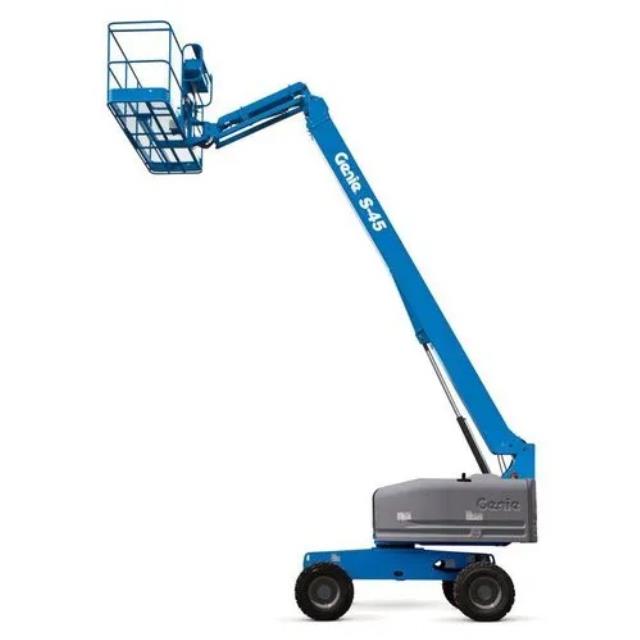

MANLIFT, 45', STRAIGHT


	Image for reference only Actual item may look different Click on image for larger view Click on above thumbnails for alternate view

4 Hour: $300.00

Daily: $300.00

Weekly: $1,350.00

Monthly: $4,650.00

Quantity: for a period of
4 hour(s) day(s) week(s) month(s)

Additional Information

FUEL FEE OF $7.00 GAS / $5.00 DIESEL PER METER HOUR USED
*
AVAILABLE MODEL;
MOD# S45
SPECS:
Working height maximum* 51 ft
Platform height maximum 45 ft
Horizontal reach maximum 36 ft 8 in
Below ground reach 4ft 11in
Platform length - 8ft / 6ft model 3 ft / 2 ft 6 in
Platform width - 8 ft / 6 ft model 8 ft / 6 ft
Height - stowed 8 ft 2 in
Length - stowed 27 ft 10 in
Width 7 ft 6 in
Wheelbase 7 ft 3 in
Ground clearance - center 1 ft 5 in
*
Productivity
Lift capacity 500 lbs
Platform rotation 160
Vertical jib rotation 135
Turntable rotation 360 continuous
Turntable tailswing 2ft 10in
Drive speed - stowed 4.8 mph 7.7 km/h
Drive speed - raised** 0.68 mph 1.1 km/h
Gradeability - 2WD - stowed*** 30%
Gradeability - 4WD - stowed*** 40%
Turning radius - inside 6 ft 8in
Turning radius - outside 15 ft 8 in
Controls 12V DC proportional
Tires - RT lug 12-16.5 NHS
Tires - ribbed (2wd front) 12.5L-16SL
Hydraulic tank capacity 45 gal 170 L
Fuel tank capacity 20 gal 75.7 L
Weight: 14,790 lbs 6709 kg

Also check the following item(s) related to the above:

HARNESS, SAFTEY

* All prices are in CI$ and are subject to change and other fees may not be shown in the above price lists. Rates are rental only. Other charges may apply for fuel, cleaning, delivery, setup, etc. Some event equipment item photos show add-on decor items by others. Please check with us if in doubt on what is included.
